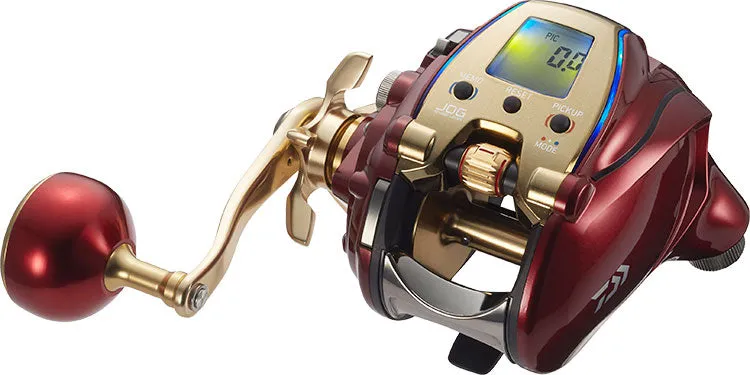

"REAL MONSTER MEGATWIN" with comfortable operation by aluminum JOG, light weight, and further refinement of design
The flagship model of Seaborg, which has further refined operability, weight reduction, and design while maintaining the basic performance required for small electric models. One-hand comfortable operation The aluminum JOG power lever allows delicate intuitive operation even with wet fingertips on the field. The angler can control the speed with one thumb, from shelving, luring, slow hoisting, waking up, and collection. MEGATWIN-PRO, which can switch between Hi/Lo gears, shows its true value by preventing squid from falling apart with a smooth gear shift, and by unexpectedly spearing a big game.
Daiwa Technology
[One-hand JOG operation procedure ① Clutch OFF (insert device)]
[One-handed JOG operation procedure ② Clutch ON (bottoming / shelf removal)]
[One-hand JOG operation procedure ③ JOG winding (shelving, breaking, sprinkling, collecting)]

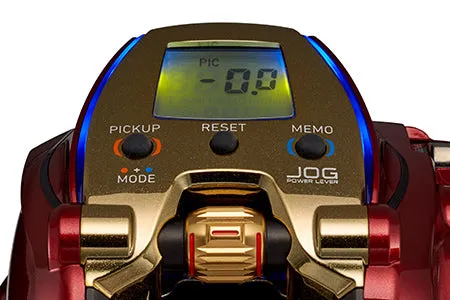

■ JOG POWER LEVER
By moving the position of the power lever to the center of the body and changing the shape from the lever to the jog dial style, you can wind up the rod and turn the clutch on and off with just one thumb while holding the rod. Hands were completely freed from lever operation. If you hold the rod, your thumb will naturally be attached to the upper part of the body, so it is ergonomically reasonable. The "jog power lever" enables free operation with one thumb (200-300J series). The Seaborg 500/800/1200J series can be operated with the left thumb.
■ DENDO&RYOJIKU REEL MAGSEALED BALL BEARING [Electric & double-axis reel mag shield ball bearing]
DAIWA's only one technology "mag shield" has evolved further. By suppressing the intrusion of water and foreign matter into the ball bearing, rust, salt, and abnormal noise are largely eliminated while maintaining the original performance. We succeeded in dramatically increasing waterproofness and durability. In the electric reel, it is the easiest to salt and adopted for the side plate side spool shaft axis which is difficult to maintain. By realizing further waterproofness and durability, the initial performance is maintained.
■ ATD (Automatic Drag System)
As the name "automatic" suggests, this is a new-generation drag system that operates smoothly according to the pull of the fish and continues to work while changing smoothly. In addition to the smoothness without stick (unevenness), it is designed to suppress the drop in drag force during the fight, assuming interaction with large blue objects.
■ Mega Twin Pro
Mega Twin mechanism is an electric reel that can achieve both speed and power by switching between Hi and Lo gears. With the evolved Mega Twin Pro, the angler can switch between speed and power by himself, so when retrieving a tackle, the speed mode is used for efficient reversal, and when fighting fish, the power mode is used for overwhelming hoisting power even against large fish. Demonstrate. In addition, the "Mega Twin Pro" achieves smooth gear changes with little shift shock when changing gears. A transmission system only for Daiwa electric reels that can catch big fish with small electric power as the angler wants.
■ MAGMAX_MOTOR
The core of the motor system is the magnet that generates power. The "special neodymium magnet" adopted by DAIWA is an ideal magnet that can generate sufficiently high torque even at low rotation with little load. It boasts a toughness that can withstand the strong running of large blue-runners and the thrust of large dies, and the power to easily reel in multiple hooks of flying squid. Of course, delicate output adjustments such as "slow hoisting" and "slow boat stop" are also handy. In addition, the brush motor with good response has excellent instantaneous power, and the hoisting operation is as the angler thinks. Custom motor for DAIWA electric reel.
■ Magmite structure & FF structure
Magmite structure that maximizes the power of the motor by making full use of the limited space in the electric reel. Maximum power and speed up in a small space. In addition, the cooling effect of the motor is improved, contributing to further motor drive efficiency. By placing the motor in front of the spool, the reel is designed to have a low profile, and the FF structure makes it easy to hold and use. In addition, a level wind is placed between the motor and the spool to achieve further compactness.
■ SYNCHRO LEVEL WIND [Synchro level wind]
A mechanism that interlocks the left and right reciprocating motion of the level wind (line guide) according to the spool rotation when the device is dropped and when it is wound up. Maintains a clean winding state and realizes a smooth device drop. In addition, the drawer of the drag is smooth.
■ Lightweight and powerful aluminum forged arm/aluminum round knob
A large aluminum round knob that can be gripped firmly is standard equipment. It can be wound up firmly in situations where manual winding is important, such as when taking in on the boat. Since it is made of aluminum, it is easy to remove stains such as tops.
| Function/Specifications | feature |
|---|---|
| ■ Aluminum die-cast body | The aluminum body material, which has high rigidity and little deformation, firmly supports the drive section including the motor, supporting a powerful fight. |
| ■ Infinite | A mechanism that eliminates the rattling of hand-wound reels and provides a smooth winding feeling like a hand-wound reel. |
| ■ Constant speed winding mode | A function that prevents loosening by winding at a set speed regardless of the load on the reel. |
| ■Electric slow winding | A function that allows "slow winding", which is said to be an effective technique for various target fish. Of the electric winding speed adjustment, set the speed at low speed to slow. |
| ■ Display correction function | A function that can be easily corrected during actual fishing when the counter display deviates from the thread color. |
|
■ Counter from top/ bottom |
Since the water depth can be measured from both the top and the bottom, accurate fishing is possible in any situation and fishing. |
| ■ Short winding switch | A short winding function that winds up at the set speed just by pressing the switch when removing tana or thread dander. Choi stop switch is also used. |
|
■ Master Shakuri / Shakuri Switch |
A convenient function that invites you to the electric reel. You can freely set the width, waiting time, and range of jerking, so you can capture as you wish. |
|
■ Komasetaimu & Komasetimer winding |
You can set the time from when you put in a device to when you retrieve it, and you can make accurate returns. With the timer display function, you can accurately grasp the time to put the device in. |
| ■ Hoisting speed actual value display | Function to display the actual winding speed. Useful as a guideline for speed when winding. |
| ■ Selectable boat stop | A function that automatically stops winding when the set length is reached during electric winding. If you set it to a length that is convenient for taking in, you can double the return efficiency and help prevent entanglement, which is the main cause of rod damage. |
| ■ Slow boat stop | A function that prevents disassembly due to impact by stopping slowly when the electric hoisting stops at the ship's side. |
| ■ Yarn feed mechanism | A function that assists the rotation of the spool that ejects the thread by rotating the motor gear in reverse when the device is dropped. In combination with Ultra Spool Free, it is effective for fishing where you want to drop the device as soon as possible. |
| ■ Washable | It can be washed with water using a neutral detergent (however, washing by submerging it in water and hot water is strictly prohibited). |
| ■Alarm ON/OFF | ON / OFF switching of alarm switch sound is possible. |
| ■ Memory backup function | A backup function that memorizes the contents set in the mode for the next fishing trip. |
■ Fall prevention spool free adjustment dial
Specifications:
| Gear Ratio |
Weight (g) |
Maximum drag force (kg) |
Standard winding amount : Bright (No. -m) |
Standard winding amount : Nylon (No. -m) |
Maximum hoisting force (kg) |
Normal hoisting speed at 1kg load (m/min) |
JAFS standard hoisting force (kg) |
JAFS standard speed (m/min) |
| 4.4 | 670 | 13 | 3-400 4-300 |
5-280 6-200 |
64 (71) |
Hi173/Lo119 | 20 | Hi210/Lo145 |
| 4.4 | 670 | 13 | 3-400 4-300 |
5-280 6-200 |
64 (71) |
Hi173/Lo119 | 20 | Hi210/Lo145 |
*The maximum hoisting force is a reference value based on power supply voltage 13V and shaft torque. * Kg = Kgf cm (power range for mega twin mechanism)
* Normal winding speed is the average winding speed of 100 m with a power supply voltage of 13 V and a 1 kg load.
* JAFS standard hoisting force (power range for Mega Twin mechanism)/speed is an approximate value at a power supply voltage of 13 V according to the Japan Fishing Goods Industry Association regulations.
*The values in ( ) are approximate values when using Super Lithium.
*Bright is our shelf sensor bright (PE).
* The amount of winding thread is a guideline and varies depending on the manufacturer, item, and tension.
Glossary |
||||||||
* "JAFS Standards" = Standards for fishing products established by the Japan Fishing Goods Industry Association. |
