Product Details
＋
Mega power & mega speed "AUTOMATIC MEGA MONSTER

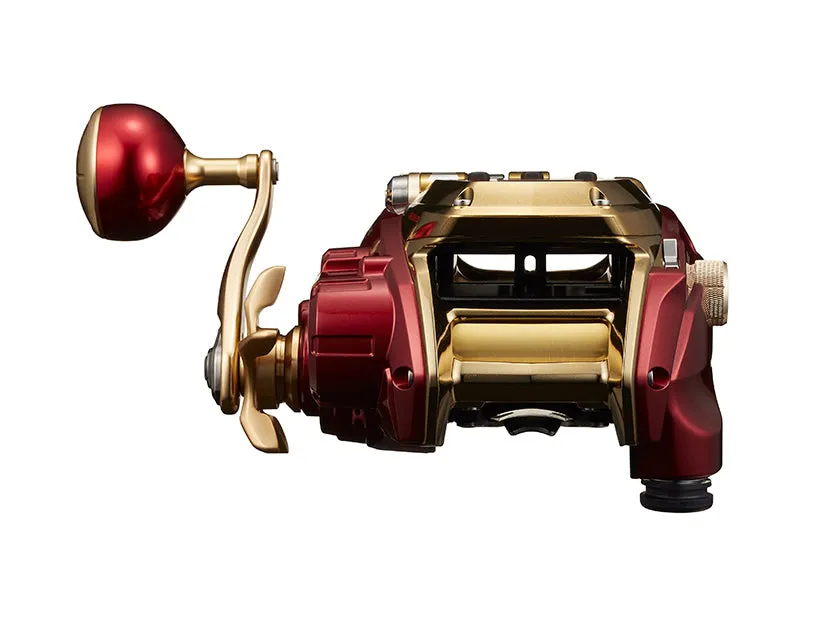

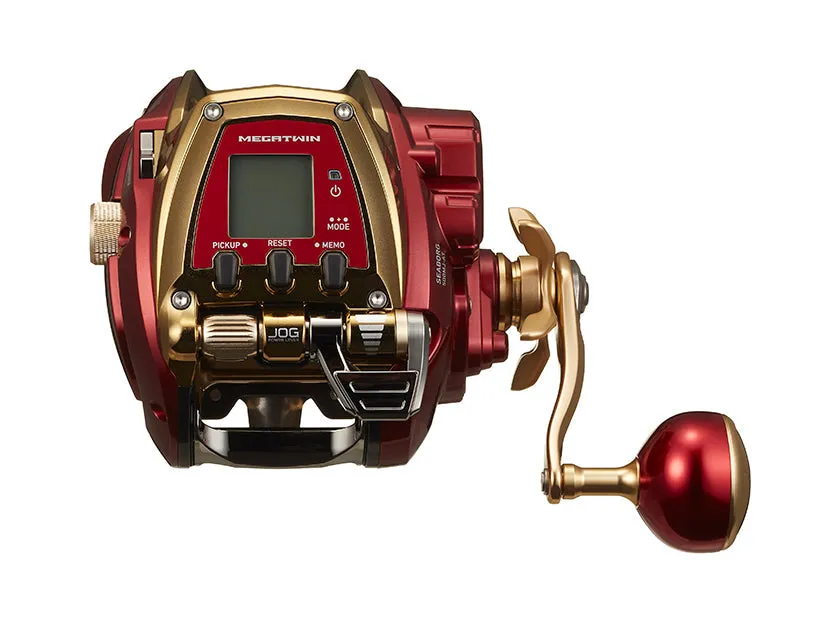

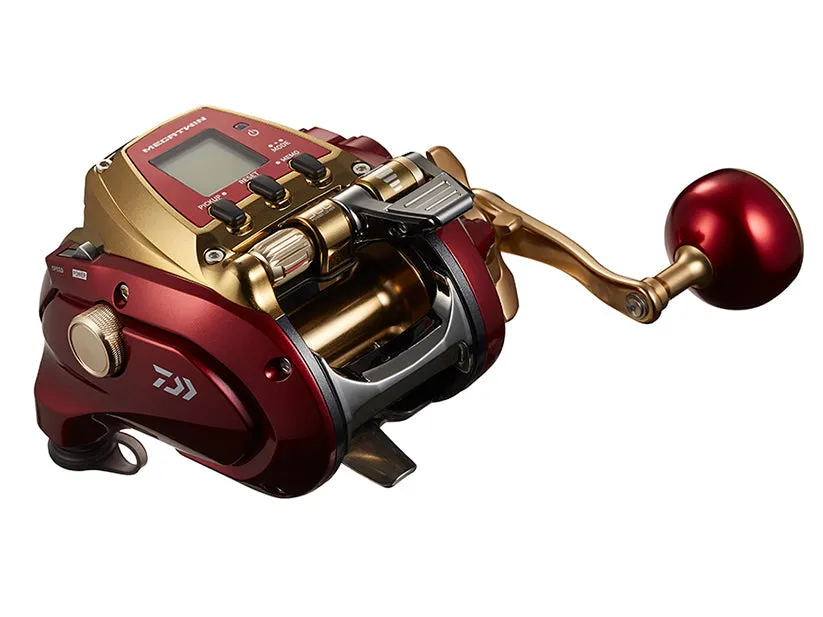

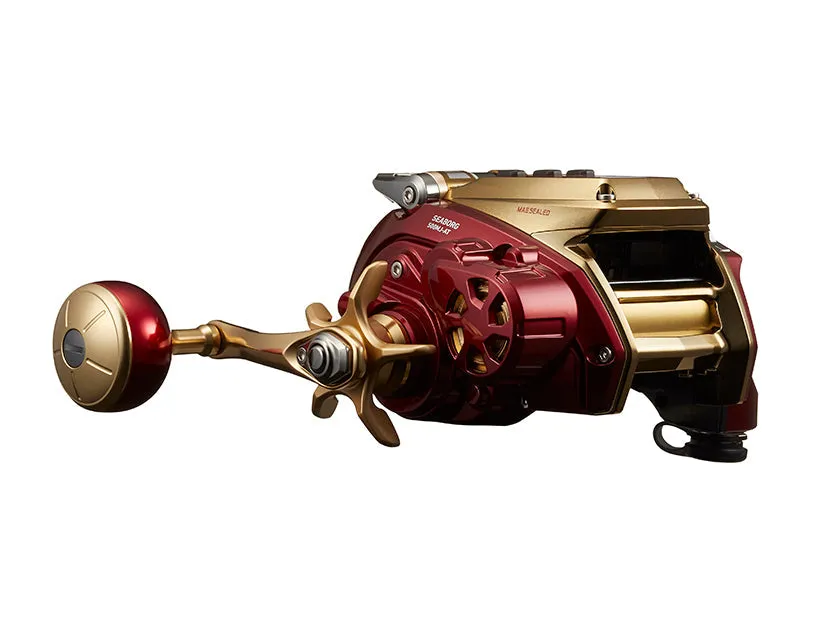

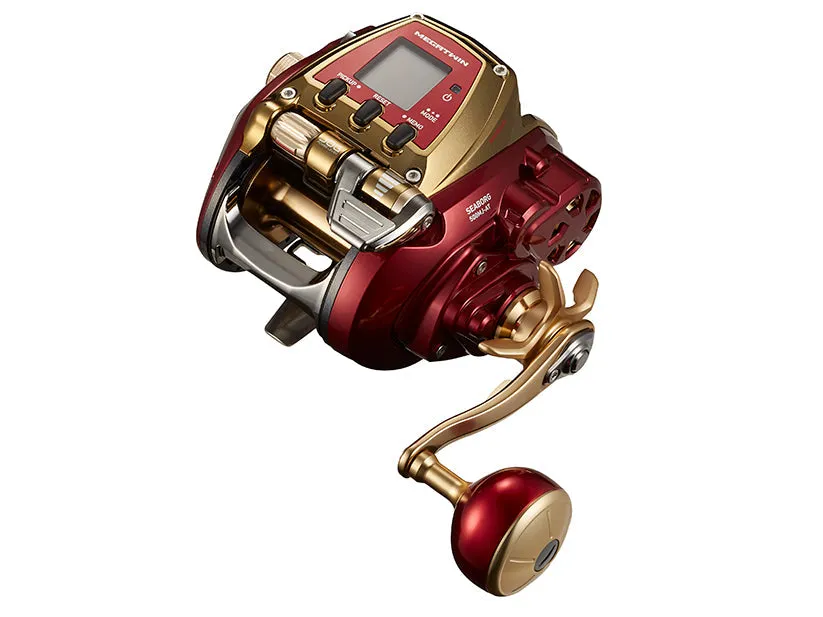

The Daiwa 22 Seaborg 500MJ-AT boasts a powerful MAGMAX motor with instant power and torque; it's durable aluminum build ensures excellent heat dissipation and durability. The MEGATWIN-PRO gear shift system gives comfortable, reliable performance with no shift shock. The tough ATD drag delivers consistent performance for handling larger catches, while the one-hand aluminum JOG power lever gives you instant control. The fall brake dial allows for quick setting of drop-speed, while the large dot display LCD is easily visible, even when wearing polarized sunglasses. The 500MJ-AT is even waterproof and comes equipped with the NEW Free-Spool Clutch System and Automatic Shelf Stop Function for a monster performance on any target.
[Basic operation procedure]
** Fukase = Free Spool
[Aluminum JOG power lever]
Robust one-arm control:1. Utilize the jog lever with your left thumb2. Curl with your index finger and right thumb to activate the power lever
The motor housing is crafted from aluminum which provides superior heat dissipation, improving motor durability while increasing the breaker operating range. Similarly to the 19SB500MJ, the motor features power tuning for customized performance.
Smooth gear changes create minimal shock when shifting from SPEED to POWER, allowing for manual control under the angler's initiative. A change in LED color on the IC counter reflects the activation of the Mega Twin function, while the LED lights up green when the clutch is ON and red when OFF.
The brake system on Daiwa 22 Seaborg 500MJ-AT allows users to quickly and precisely adjust the drop speed fromMinimum to Maximum (Seal 1 to 10) with a 180-degree turn of the dial. This adjustable drop speed helps to eliminate backlash and ensures that bait is caught mid-fall when used for drop-in fishing, aiding in achieving the perfect hookup.
※Accessory: Attachment of guideline sticker
※Accessory: Attachment of guideline sticker
-The menu announcements are legible and easy to understand, and settings can be adjusted without consulting manuals. *2-second press of PICKUP and MEMO buttons on the menu screen yields large, backlight-resistant graphics with enhanced visibility--even when wearing polarized glasses. *Powering on the unit activates the D Beck display.
■IC counter menu
・The Daiwa 22 Seaborg 500MJ-AT is equipped with a clutch sensor, enabling it to automatically activate the clutch upon detecting spool rotation in free-spool Mode. This instantaneous operation helps prevent backlash. Additionally, this motor can be set to an or a "free-spool click sound," both of which come in four varieties, so users can identify which rod is set up on the same boat by sound.
| Menu | Operation |
|---|---|
| Line input | P1/P2/P3 |
| sub counter | Counter from the bottom / Hoisting speed display / Hoisting remaining time display |
| Ship veri stop | 1m~5m range |
| Line feed | ON⇒Automatic control / OFF |
| Automatic Jigging | A little winding and stopping / jerking |
| Timer winding | ON/OFF |
| Free spool mode | ON/OFF |
| Alarm sound | ON/OFF |
| Automatic shelf stop | ON/OFF |
| Constant speed Winding | ON/OFF |
| Drag sound | ON / OFF *Electronic sound |
| Water depth correction | Depth counter fix |
| Actual fishing history | Usage distance / time |
| Language | Japanese / English / Traditional Chinese / Korean |
| Unit | m/ft |
【Free Spool Mode】
【Automatic shelf stop】
Equipped with a clutch sensor, the Daiwa 22 Seaborg 500MJ-AT provides automatic shelf stop setting to improve fishing results. This automatic operation enables fishing while maneuvering the boat. The shelf memo feature allows users to press the shelf at which they want to stop; when launched again, the reel will automatically stop at the same shelf. Additionally, the user can pre-set the shelf stop designation on the menu screen so the reel will automatically stop at the designated shelf. The bottom automatic stop detects the bottom (spool rotation stop) and switches the clutch on. This works in tandem with the shakri setting to initiate shakri operation after the shelf stops.
【Rod clamp】
・Aluminum rod clamp (included)
* Can be mounted from Φ16~Φ28
* Can be mounted from Φ16~Φ28
[Handle Knob]
・Smooth gear change with little shift shock when switching between SPEED and POWER gears
・Manual operation
A next-level drag system performing in a smooth manner with the pull of the fish and maintaining even resistance throughout the tussle. With a setting limiting any drops in drag power during a confrontation, fishermen can feel secure when facing off with large fish.
- L replaceable
- Super Power Cord 270 (included)
*Different from SB800/1200MJ. - We recommend replacing the battery after 2 years of use or 60 times.
Fishing Photos
In the Gentatsu Fukase fishing test, drag max amberjack 8kg class, hoisting at full speed with extra power!
Reel in the red sea bream 5kg class with ease!
Daiwa Technology
■JOG POWER LEVER
By relocating the power lever and revamping it from a lever to a jog dial design, winding and engaging/disengaging the reel is now easily achieved with just one's thumb while the other hand remains unoccupied. This "Jog Power Lever" allows for greater dexterity and maneuverability (200/300J series); the Seaborg 500-1200J series provides co-operative operation with the thumb of the left hand and power lever of the right. Ergonomically, the position of the body enables the thumb to rest comfortably at the top.■MAGSEALED BALL BEARING
Water and foreign matter intrusion is prevented, thus reducing rust, salt, and noise. This boosts waterproofness and durability. The spool shaft axis, which is challenging to maintain, has been implemented in electric reels for salt-resistance. Enhanced waterproofness and longevity ensure initial performance of smoother spooling and improved winding efficiency.
■MEGATWIN [Mega Twin]
The Mega Twin System has fulfilled the desire for powerful electric reels, and the Daiwa electric reel offers a unique two-gear power and speed shifting mechanism. MEGATWIN-PRO technology enhances this capability.・Smooth gear change with little shift shock when switching between SPEED and POWER gears
・Manual operation
■ MAGMAX MOTOR
The motor system of the Daiwa 22 Seaborg 500MJ-AT is powered by a strong, special neodymium magnet capable of generating high torque even at low rotation speeds. It is powerful enough to handle big catches like bluefish and sea bream, and is precise enough to adjust levels like "slow hoisting" and "slow gunwale stop." Additionally, the responsive brush motor offers excellent instantaneous force that the angler can control. This custom motor is designed specifically for DAIWA electric reels.■ATD
■ MAGMIGHT structure [magmite structure]
The structure of the Daiwa 22 Seaborg 500MJ-AT optimizes the power of the motor, making the most of the limited space within the electric reel. The result is increased power and speed within a compact form factor. In addition, the cooling effect of the motor has been improved, raising motor efficiency.Videos
Specifications:
| Gear ratios | Winding length (cm/1 turn of the handle) | Dead weight (g) | Maximum drag force (kg) | Standard Winding Yarn Volume Nylon (No-M) | Standard thread volume PE ( No-m) | Bearing (Ball/Roller) | Maximum Winching Force (kg) | Normal winching speed at 1 kg load (m/min) | JAFS Standard Winching Force (kg) | JAFS reference speed (m/min) |
| 3.7 | 57 | 1010 | 23 | 6-350 7-300 8-250 | 4-500 5-400 6-300 | 22/1 | 90 （100） | Hi 180（200） Lo 125（140） | 22 | Hi 230 Lo 150 |
*The maximum hoisting force is a reference value based on a power supply voltage of 13V and shaft torque.
*Kg=Kgf・cm (Power range for Mega Twin mechanism)
*Common hoisting speed is the average hoisting speed of 100m at a power supply voltage of 13V and a load of 1Kg.
* JAFS standard hoisting force (power range for Mega Twin mechanism)/speed is an approximate value at a power supply voltage of 13 V according to the Japan Fishing Goods Industry Association regulations.
*The values in parentheses are approximate values when using super lithium.
*The amount of winding thread is a guideline and varies depending on the manufacturer, item, and tension.
*Kg=Kgf・cm (Power range for Mega Twin mechanism)
*Common hoisting speed is the average hoisting speed of 100m at a power supply voltage of 13V and a load of 1Kg.
* JAFS standard hoisting force (power range for Mega Twin mechanism)/speed is an approximate value at a power supply voltage of 13 V according to the Japan Fishing Goods Industry Association regulations.
*The values in parentheses are approximate values when using super lithium.
*The amount of winding thread is a guideline and varies depending on the manufacturer, item, and tension.
