Product Details
＋
Powers Fasteners PFM2511110 Description

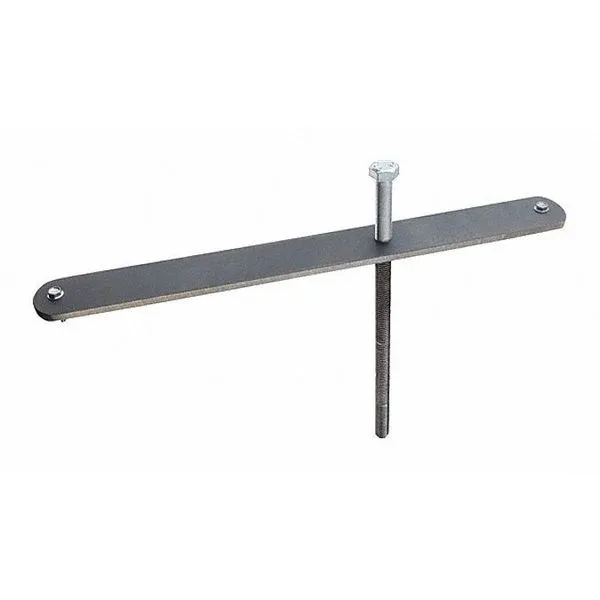

The DDI (Deck Insert) is a concrete insert designed for installation in concrete-filled metal deck assemblies (i.e. “pan-deck”, “Q-deck”) applications. After installation, the threaded male hanger of the insert protrudes below the surface of the deck. The DDI comes in sizes ranging from 3/8" to 7/8" in diameter. The threaded bolt offers adjustability for precise height requirements and guarantees the minimum embedment depth. The longer "T" brace enables a variety of installation locations in across the deck.
Powers Fasteners PFM2511110 Includes
- (1) Deck Insert
Powers Fasteners PFM2511110 Features
- Fast and simple to install, low installed cost
- Pre-mounted self drilling screws for convenient installation
- Fine-tuned thread length for guaranteed minimum embedment
- Lengthened "T" brace for more flexible installation positions
Powers Fasteners PFM2511110 Specifications
| Material | Carbon Steel |
| Size | 1/2" |
| Drill Size | 9/16" / 5/8" |
| Rod Size | 1/2" |
