Product Details
＋

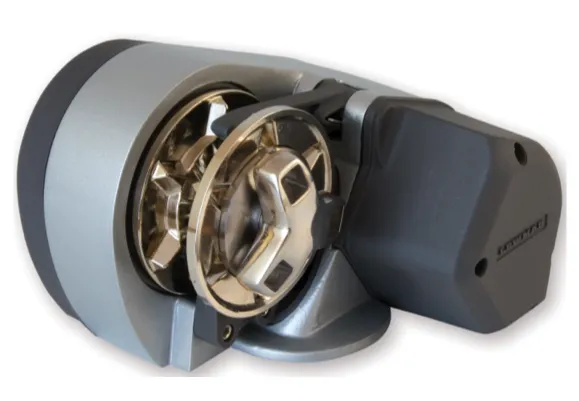

The Pro-Series range of Horizontal Windlasses is perfect for all boats up to 8.5m (28ft), particularly where space is a major issue. The Windlass is mounted completely on the deck allowing maximum space for line storage. They are also perfect for installations using mainly rope rode as the spring loaded arms ensure the best possible control.
Lewmar’s new Pro-Sport rope/chain windlass is designed as an economical package for rope and chain applications, without compromise to quality or performance. Pro-Sport is designed around a highly efficient spur gearbox, using smaller, more powerful permanent magnet motors.
The unit also has manual freefall, is DIY-ready and easy to install. The rugged aluminium centre case and durable composite side covers make Pro-Sport the perfect choice.
Complete with push-button control, anchoring has never been easier.
Key Features
- Powerful motor providing superior line speed • Low power consumption / current draw
- Dual direction powered operation
- Manual freefall
- Maximum pulling power: 250kg (550 lbs)
- Convenient above-deck installation
- 3-year warranty
- For boats up to 9m (28ft)

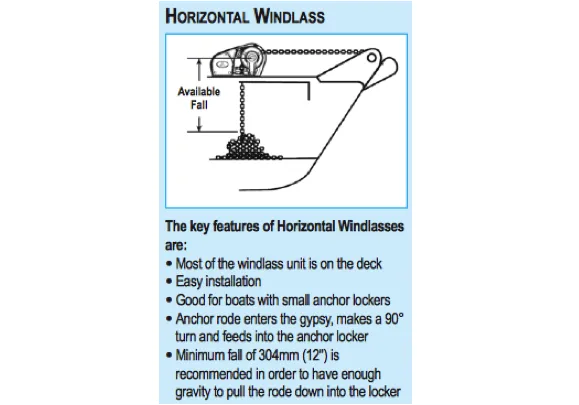

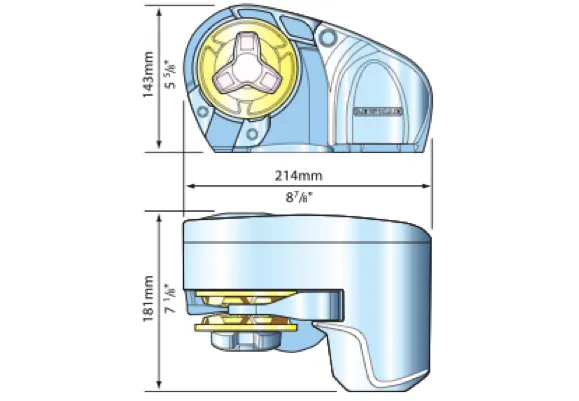

- See attached images
- Chain 6mm DIN766, 1/4" ISO G4, 7/16" BBB, 7mm DIN 766
- Rope Size & Description: 12mm, 1/2", 3 or 8 Strand Rope
- Motor Supply Voltage: 12V
- Motor Power Watts: 150W
- Max Pull: 250Kg, (550lb)
- Maximum Line Speed: 30 metres min ( 98ft min )
- Working Load: 62.5Kg ( 137.5lb )
- Nominal Current Draw: 20A
- Weight: 6.5kg ( 14lb )
- Circuit Breaker: 25A
