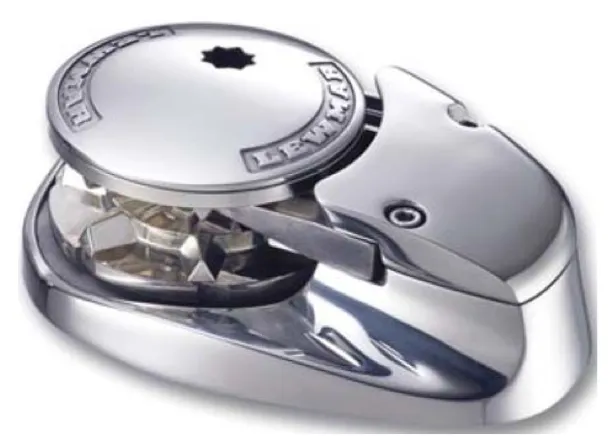

With 100% 316 stainless steel housing and a sleek flush-mount design that hides the motor down below, the V700 is one of the most attractive and durable windlasses on the market. It works at the push of a button and has two built-in features that make it unique – motor protection and anchor lock.

Key Features

• Fits calibrated chains: 6mm DIN766, 1⁄4" G4 or BBB
• 7mm DIN766
• Dual Chain Gypsy
• Minimal parts for enhanced reliability
• 100% 316 stainless steel deck unit
• IP67 Rated (Waterproof to 1 meter)
• Fall Safe anchor lock
• Fast line speed
• Manual recovery option
• Impact-resistant motor cover
• 5-year warranty
• For boats up to 10.5m (35 ft)
• Magnet & sensor kit available on request

Cable Sizes for V700 (12V): 0-15mtr/0-50ft: 10mm2/8AWG

Switch Wiring: 1.5mm2/16AWG

Current rating for switch wire: 5A

Specifications

• Max Chain Size : 6/7mm/ 1/4"
• Motor Supply Voltage: 12V
• Motor Power: 320W
• Max Pull: 3204kg,700lb
• Max Line Speed:25 meters min, 82ft min
• Working Load: 79kg, 175lb
• Normal Current Draw: 46A
• Typical Line Speed/Min: 15m, 50ft
• Circuit Breaker: 35A
• Weight: 6.5kg, 14lb

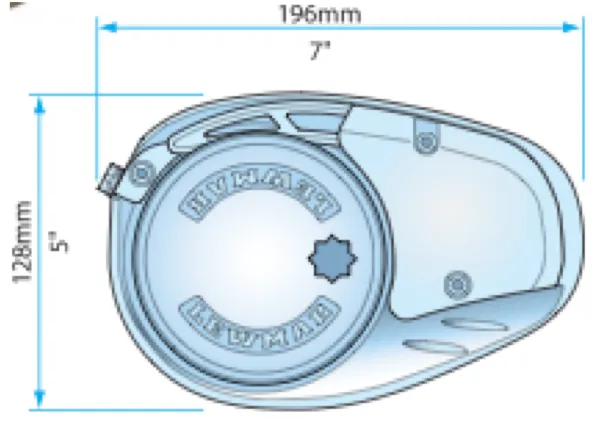

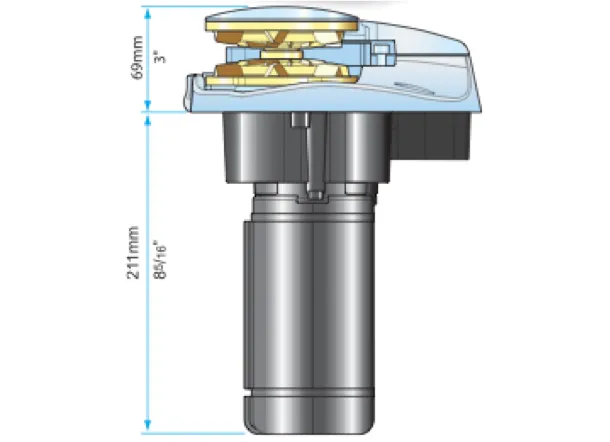

• See attached images
